The Metallic 3D Printer


The Metallic 3D Printer

$35,000.00

Please contact us to purchase this item. We only accept cash, check, or wire transfer for this item.

This affordable, tough printer can be used to manufacture complex parts with geometries that traditional manufacturing methods are unable to produce or the part is too costly to produce. We have a material range that includes difficult to process materials so you can manufacture overall better metal parts even superalloys for your business or clients. Another innovative feature is the wide range of materials to print from 316L Stainless Steel all the way to Glass and medical-grade FRESH Bioprinting. See specs for details on materials.

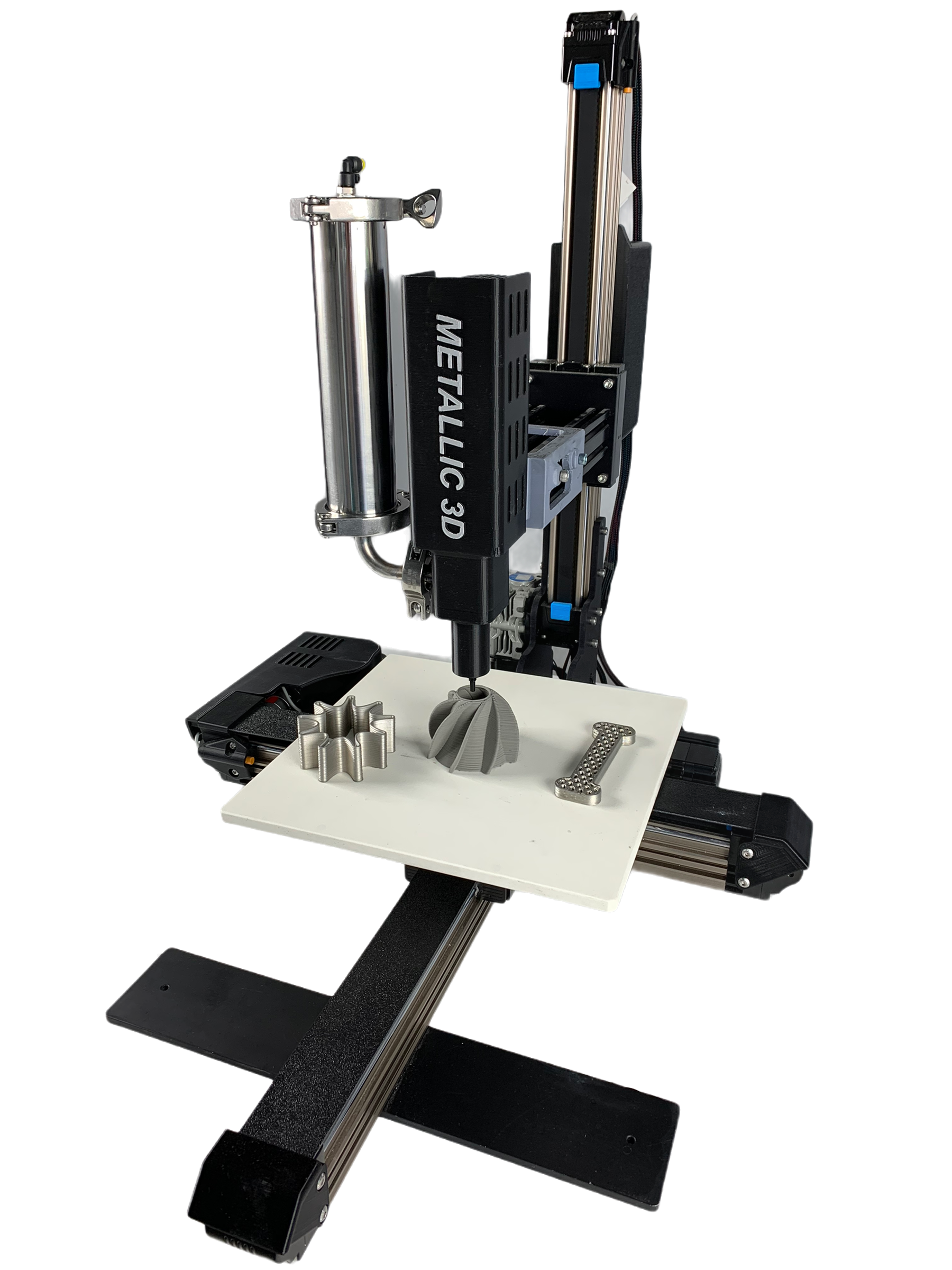

The 3DM-300 print system is the most affordable, easy-to-use, safe, fast, versatile metal printer available. By building the complete system in-house we are able to significantly lower the barrier of entry to this new exciting 3D technology. Our printers are built here in the U.S. and come with a one-year limited warranty and one-year tech support.


Local Pickups will receive a Free, 1 Hour Tutorial.

For Additional Pictures visit the Printer overview section of the info page or view them in the Gallery.

Add To Cart

Metallic 3D BMPD printer specs:


  • DIMENSIONAL ACCURACY: ± 0.5 MM

  • MAXIMUM PART BUILD SIZE: 280 X 280 X 325 MM

  • COMMON LAYER THICKNESS: 2.5MM DOWN TO 0.2 MM

  • MAX BUILD RATE: 1,000 ML PER HR.

  • MAX BUILD WEIGHT: 8 KILOS PER HR.

  • FEEDSTOCK EXTRUDER ASSEMBLY: 1 TO 5 LITERS CONTAINER

  • REGULAR ENVIRONMENT TEMP.: 210C AT 40% HUMIDITY

  • NOZZLE DIAMETER: 0.4MM UP TO 5.0MM

  • NOZZLE MATERIAL: STAINLESS STEEL, NICKEL COATED STEEL OR PLASTIC

  • PRINTING TABLE: ACRYLIC OR CARBON (ADHESION SHEETS RECOMMENDED, I.E. ABS)

  • SOFTWARE: METALLIC 3D FABRICATE GUI FILE TYPES STL AND OBJ

  • BROWSER REQUIREMENTS: ACCESSIBLE VIA ANY WEB BROWSER

  • NETWORK CONNECTIVITY: WIRELESS ON ANY DEVICE

  • POWER REQUIREMENTS: 100-240-VAC (5 A PEAK)

  • EXTERNAL DIMENSIONS (HXDXW): 610 X 584 X 559 MM

  • WEIGHT: 16.3 KG (36 LBS)

Materials for use with Metallic 3D BMPD print system.

METALS:


  • - STAINLESS STEEL

  • - TUNGSTEN STEEL

  • - TOOL STEEL

  • - COPPER

  • - NICKEL

  • - INCONEL

  • - COBALT

  • - CHROMIUM

  • - MOLYBDENUM

  • - TITANIUM

  • - ALUMINUM

  • - PRECIOUS METALS (GOLD, PLATINUM, PALLADIUM, STERLING SILVER)

CERAMICS:

  • - ALUMINA

  • - ZIRCONIA

  • - SILICON NITRIDE

  • - GLASS

CERMETS:

  • - TUNGSTEN CARBIDE/COBOLT (WC-CO)

  • - METAL-BONDED DIAMOND COMPOSITES

3D PRINTER SET CONSISTS OF:

  • 1X 3DM-300 METALLIC 3D PRINTER ( MADE IN USA )

  • 1X FEEDSTOCK CONTAINER 950 ML NET FOR EXTRUDER ASSEMBLY

  • CHROME PLATED BRASS NOZZLES 0.14, 0.16 AND 0.18mm ( 12 each )

  • 1X PRINTING TABLE ACRYLIC

  • 10X ADHESION SHEETS ABS

  • DOCUMENTATION
